Plotter

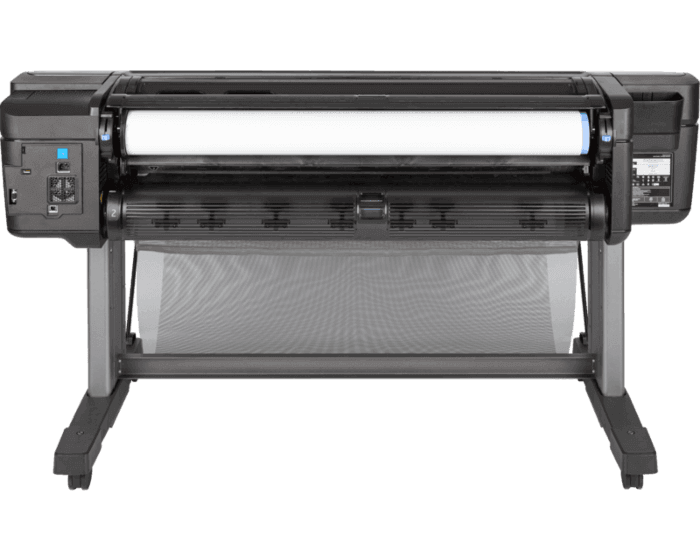

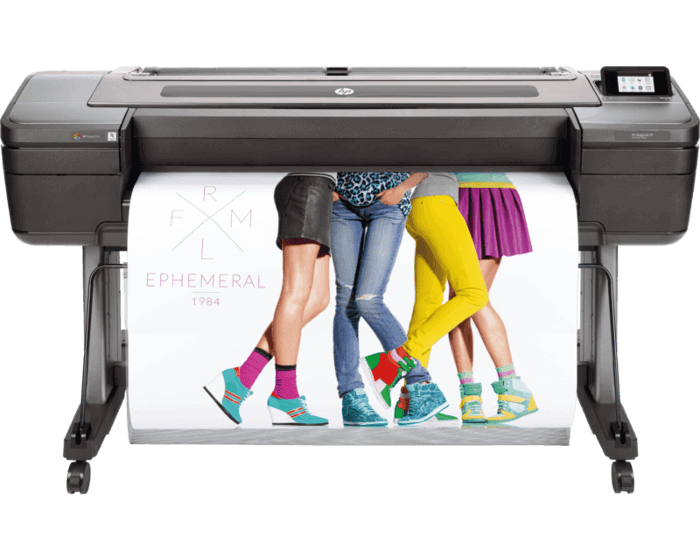

HP Designjet Z9 44" Photoscript Printer

PostScript Printer

The perfect fit for your office and budget, This is a space-saving plotter that also saves time by connecting and printing right away with Wi-Fi capabilities. Radically simple from setup to printout, the HP DesignJet speeds up your PDF printing process with free HP Click software.

Specification
Overview

Model Number	W3Z72A
Print Speed	769 ftÂ²/hr1 (71.4 mÂ²/hr1 ) on plain media Normal: 185 ftÂ²/hr1 (17.2 mÂ²/hr1 ) on coated media Best: 48 ftÂ²/hr1 (4.5 mÂ²/hr1 ) on glossy media
Print Resolution	Up to 2400 x 1200 optimized dpi
Media Handling	Single-roll: Roll feed, top sheet feed, rear sheet feed for rigid media, media output bin, automatic horizontal cutter; Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
Memory	128 GB (virtual)9 ; 500 GB self-encrypting hard disk
Weight	159-216 lb (72-98 kg)
Size	A0-44"

Connectivity	Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
Technical/Graphical	GRAPHICAL
MFP/SFP	SFP
Roll Type	SINGLE ROLL
Script	POST SCRIPT

Read Full Specs

Overview

Save space, time, and money with a compact plotter with built-in Wi-Fi that lets you print right away. Speed up the PDF printing process. Print from your smartphone with the HP Smart app. Get high quality and high speed.

THE PERFECT FIT For your office and budget

DESIGNJET QUALITY From the most trusted brand

RADICALLY SIMPLE From setup to printout

Stay connected with easy mobile printing options

SELECT A SOLUTION / MODEL

HP Designjet Z6 24" Photoscript Printer

T8W15A

866 ftÂ²/hr1 (80.5 mÂ²/hr1 ) on plain media Normal: 202 ftÂ²/hr1 (18.8 mÂ²/hr1 ) on coated media Best: 104 ftÂ²/hr1 (9.7 mÂ²/hr1
Up to 2400 x 1200 optimized dpi
Single-roll: Roll feed, top sheet feed, media output bin, automatic horizontal cutter; Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
128 GB (virtual)8 ; 500 GB self-encrypting hard disk:Graphics
Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
145-211 lb (66-96 kg)

HP Designjet Z6 44" Photoscript Printer

T8W16A

866 ftÂ²/hr1 (80.5 mÂ²/hr1 ) on plain media Normal: 202 ftÂ²/hr1 (18.8 mÂ²/hr1 ) on coated media Best: 104 ftÂ²/hr1 (9.7 mÂ²/hr1
Up to 2400 x 1200 optimized dpi
Single-roll: Roll feed, top sheet feed, media output bin, automatic horizontal cutter; Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
128 GB (virtual)8 ; 500 GB self-encrypting hard disk:Graphics
Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
145-211 lb (66-96 kg)

HP Designjet Z6 DR 44" Photoscript Printer with V Trimmer

T8W18A

866 ftÂ²/hr1 (80.5 mÂ²/hr1 ) on plain media Normal: 202 ftÂ²/hr1 (18.8 mÂ²/hr1 ) on coated media Best: 104 ftÂ²/hr1 (9.7 mÂ²/hr1
Up to 2400 x 1200 optimized dpi
Single-roll: Roll feed, top sheet feed, media output bin, automatic horizontal cutter; Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
128 GB (virtual)8 ; 500 GB self-encrypting hard disk:Graphics
Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
145-211 lb (66-96 kg)

HP Designjet Z9 24" Photoscript Printer

W3Z71A

769 ftÂ²/hr1 (71.4 mÂ²/hr1 ) on plain media Normal: 185 ftÂ²/hr1 (17.2 mÂ²/hr1 ) on coated media Best: 48 ftÂ²/hr1 (4.5 mÂ²/hr1 ) on glossy media
Up to 2400 x 1200 optimized dpi
Single-roll: Roll feed, top sheet feed, rear sheet feed for rigid media, media output bin, automatic horizontal cutter; Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
128 GB (virtual)9 ; 500 GB self-encrypting hard disk:Graphics
Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
159-216 lb (72-98 kg)

HP Designjet Z9 44" Photoscript Printer

W3Z72A

769 ftÂ²/hr1 (71.4 mÂ²/hr1 ) on plain media Normal: 185 ftÂ²/hr1 (17.2 mÂ²/hr1 ) on coated media Best: 48 ftÂ²/hr1 (4.5 mÂ²/hr1 ) on glossy media
Up to 2400 x 1200 optimized dpi
Single-roll: Roll feed, top sheet feed, rear sheet feed for rigid media, media output bin, automatic horizontal cutter; Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
128 GB (virtual)9 ; 500 GB self-encrypting hard disk:Graphics
Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
159-216 lb (72-98 kg)

HP Designjet Z9 DR 44" Photoscript Printer with V Trimmer

X9D24A

769 ftÂ²/hr1 (71.4 mÂ²/hr1 ) on plain media Normal: 185 ftÂ²/hr1 (17.2 mÂ²/hr1 ) on coated media Best: 48 ftÂ²/hr1 (4.5 mÂ²/hr1 ) on glossy media
Up to 2400 x 1200 optimized dpi
Single-roll: Roll feed, top sheet feed, rear sheet feed for rigid media, media output bin, automatic horizontal cutter; Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
128 GB (virtual)9 ; 500 GB self-encrypting hard disk:Graphics
Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
159-216 lb (72-98 kg)

HP DesignJet T1600 36 in PostScript Printer

3EK11A

180 D/hr, 19.3 sec/D (180 A1/hr, 19.3 sec/A1 )
Up to 2400 x 1200 optimized dpi
Sheet feed, front-loading roll feed, roll switching , integrated 100 page output stacker, media bin, automatic horizontal cutter
128 GB (file processing) ; 500 GB self-encrypting Hard disk:Graphics
Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
179 lb (81 kg), dual-roll: 187 lb (85 kg)

HP DesignJet T1600dr 36 in PostScript Printer

3EK13A

180 D/hr, 19.3 sec/D (180 A1/hr, 19.3 sec/A1 )
Up to 2400 x 1200 optimized dpi
Sheet feed, front-loading roll feed, roll switching , integrated 100 page output stacker, media bin, automatic horizontal cutter
128 GB (file processing) ; 500 GB self-encrypting Hard disk:Graphics
Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
179 lb (81 kg), dual-roll: 187 lb (85 kg)

HP Designjet Z9 44" Photoscript Printer

Overview

THE PERFECT FIT For your office and budget

DESIGNJET QUALITY From the most trusted brand

RADICALLY SIMPLE From setup to printout

Stay connected with easy mobile printing options
